Large 1.7x optical zoom
Minimized cost of ownership
Versatile and mobile
Display content that demands attention
Cost effective replacement
Wide array of flexible application scenarios
Large 1.7x optical zoom – for maximum flexibility.
Minimized cost of ownership – due to long lamp life and filter exchange intervals.
Versatile and mobile – compact and light-weight with HDMI and integrated 20W speaker.
Display content that demands attention – with XGA resolution and superb brightness levels and colour ranges,
your viewers will enjoy an outstanding visual experience.
Cost effective replacement – of existing NEC M LCD model installations to achieve better imaging forl
ectures and presentations without wall-mount adjustment.
Wide array of flexible application scenarios – thanks to multi-source conferencing and efficient split-screen
operation supported by a wide future ready range of digital connectivity.
Projector Information:-

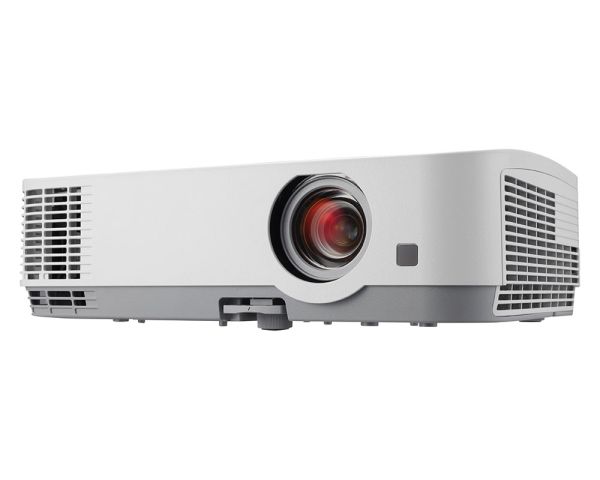

Projector Name: ME331X
Projector Group: Professional Desktop Projector
Order Code: 60004228
Image:-
Projection Technology: 3 LCD Technology
Native Resolution: 1024 x 768 (XGA)
Aspect Ratio: 4 : 3
Contrast Ratio: 12000 : 1
Brightness: 1 3300 High Bright / 2475 Normal / 1980 Eco ANSI Lumen
Lamp: 235 W AC (140 W AC Eco Mode)
Lamp Life [hrs]: 9000 Eco / 5000 Normal / 4000 High Bright Mode
Lens: F= 1.7–2.1, f= 17.5–29 mm
Keystone correction: +/- 30° manual horizontal / +/- 30° manual vertical
Projection Factor: 1.3 – 2.2 : 1
Projection Distance [m]: 0.6 – 13.8
Screen Size (diagonal) [cm] / [inch]: Maximum: 762 / 300, Minimum: 76 / 30
Zoom: Manual
Focus Adjustment: Manual
Supported Resolutions: 1920 x 1200 (WUXGA), 1920 x 1080 (HDTV 1080p/i), 1680 x 1050 (WSXGA+),
1600 x 1200 (UXGA), 1600 x 900 (WXGA++), 1440 x 900 (WXGA+), 1400 x 1050 (SXGA+), 1280 x 1024 (MAC 23),
1280 x 1024 (SXGA),1280 x 800 (WXGA); 1280 x 768 (WXGA), 1280 x 720 (HDTV 720p), 1152 x 870 (MAC 21);
1024 x 768 (XGA), 1024 x 768 (MAC 19); 832 x 624 (MAC 16); 800 x 600 (SVGA), 720 x 576 (SDTV 480p/i),
720 x 480(480p), 720 x 480 (SDTV 480i), 640 x 480 (VGA), 640 x 480 (MAC 13)
Frequency: Horizontal: 15–100 kHz (RGB: 24 kHz– 100 kHz), Vertical: 50 – 120 Hz
Connectivity:-
RGB (analog): Input (1 x Mini D-sub 15-pin, compatible to component) (YPbPr)
Output (1 x Mini D-sub 15 pin)
Digital: Input (2 x HDMI™) (Deep Color, Lip sync)
Video: Input (1 x RCA)
Audio: Input (2 x 3.5 mm Stereo Mini Jack, 2 x RCA Stereo)
Output (1 x 3.5 mm Stereo Mini Jack) (variable)
Control: Input (1 x D-Sub 9 pin) (RS-232) (male)
LAN: 1 x RJ45; Optional WLAN
USB: 1 x Type A (USB 2.0 high speed), 1 x Type B
Video Signals: NTSC, PAL, PAL60, SECAM
Remote Control:-
Aspect Ratio, Audio Control, Auto Adjust, AV Mute, Digital Zoom; Freeze, Help Eco Mode, ID set,
Optional Presentation and Mouse Control, Picture Adjust, Picture Mode, Source Select.
Electrical:-
Power Supply: 100-240 V AC, 50 - 60 Hz
Power Consumption [W]: 230 (Normal) / 193 (Eco) / 2.3 (Network Stand-by) / 0.45 (Stand-by); 297 (High Bright)
Mechanical:-
Dimensions (Width x Height x Depth) [mm]: 339 x 108.5 x 259 (without lens and feet)
Weight: 2.9 Kg
Fan Noise [dB (A)]: 29 / 36 (Eco / Normal)
Environmental Conditions:-
Operating Temperature [°C]: 5 to 40
Operating Humidity [%]: 20 to 80
Storage Temperature [°C]: -10 to 50
Storage Humidity [%]: 20 to 80
Ergonomics:-
Safety and Ergonomics: CE, EAC, ErP, RoHS, TUEV Type Approved, WEEE
Speakers [W]: 1 x 20 (mono)
Additional Features:-
Special Characteristics: Auto Eco Mode, Auto Power ON / OFF, Carbon Savings Meter, Colour Management,
Content Transmission via Network, Crestron RoomView, DICOM Simulation, Direct Power-Off Function,
High Altitude Mode, Kensington security slot; Keypad Lock, Keystone Correction (H=±30°, V=±30°),
Lens Cover; Magnify,NaViSet Administrator 2, Off-Timer, Optional User Logo, Optional WLAN,
OSD with 29 languages; Password Security System, Quick On/Off, RS-232 Control, Security Bar,
USB Display,USB Viewer for JPEG, Virtual Remote for direct PC control, Wall Colour Correction
Green Features:-
Energy Efficiency: 75 % AV mute function, Auto ECO Mode, ECO scheduler, Green one touch ECO and
AV mute button, Intelligent Power Management, Longer lamp life, Reduced power consumption,
Only 0.45W stand-by, Software scheduling
Ecological Materials: 100% recyclable packaging, Downloadable manuals, ECO packaging
Ecological Standards: ErP compliant, RoHs compliant, WEEE
Warranty:-
Projectors: 3 years pan-European service
Light Source: 6 months, max. 1000 hrs
Shipping Content:-
IR Remote Control (RD-469E), Mini D-SUB Signal Cable (1.8 m), Quick Setup Guide,
Security Sticker, Users Manual on CD-ROM, Utility software
Optional Accessories:-
DisplayNote, Lamp (NP43LP, NP16LP), MultiPresenter Stick, Wireless LAN module NP05LM2 (Europe), NP05LM4 (Russia)
